Producing organic fertilizer using ePTFE semi-permeable membrane

Producing Organic Fertilizer Using ePTFE Semi-Permeable Membranes

The production of high-quality organic fertilizer from organic waste (e.g., livestock manure, crop residues, food waste) has traditionally faced challenges such as odor emissions, nutrient loss, long fermentation cycles, and high infrastructure costs. A transformative solution is the ePTFE (expanded polytetrafluoroethylene) semi-permeable membrane covering system, also known as Semi-permeable Membrane-covered High-temperature Aerobic Composting (SMHC) or “smart molecular membrane composting.”

This article explains the working principle, key advantages, process steps, and performance benchmarks of this technology.

1. Working Principle: Selective Permeation & Micro-positive Pressure

The core of the system is a three-layer composite membrane, with the middle layer made of expanded PTFE (e-PTFE). This membrane has millions of submicron pores that create a unique “selective permeation” effect. When combined with forced aeration, it establishes a micro-positive pressure environment inside the composting pile.

How it works (step-by-step):

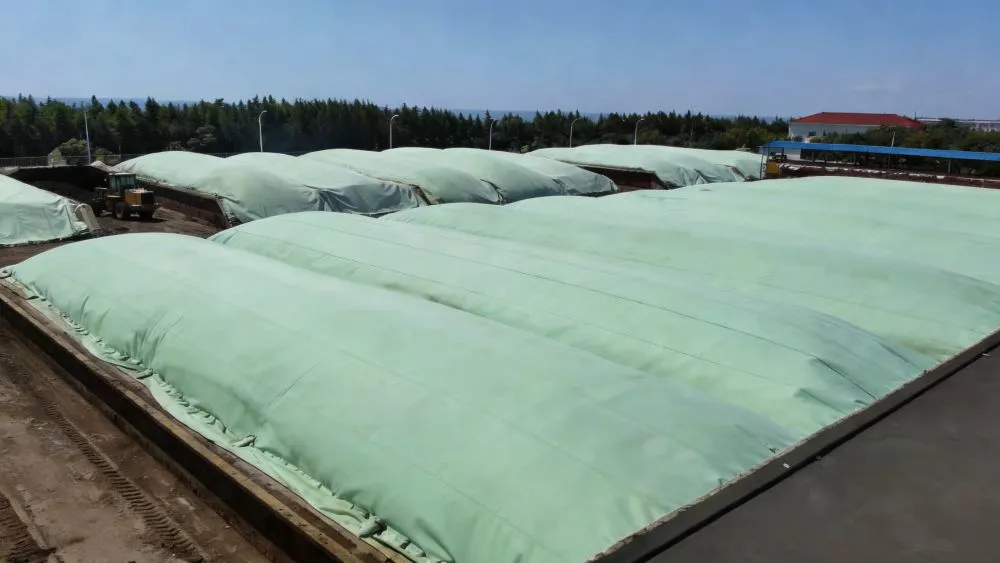

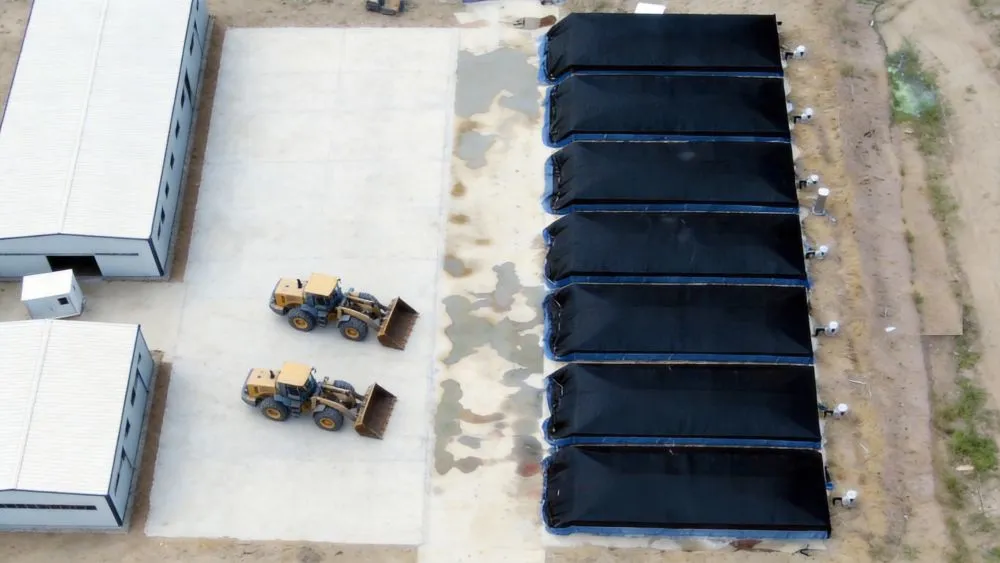

1. The organic waste mixture is formed into windrows or placed in troughs.

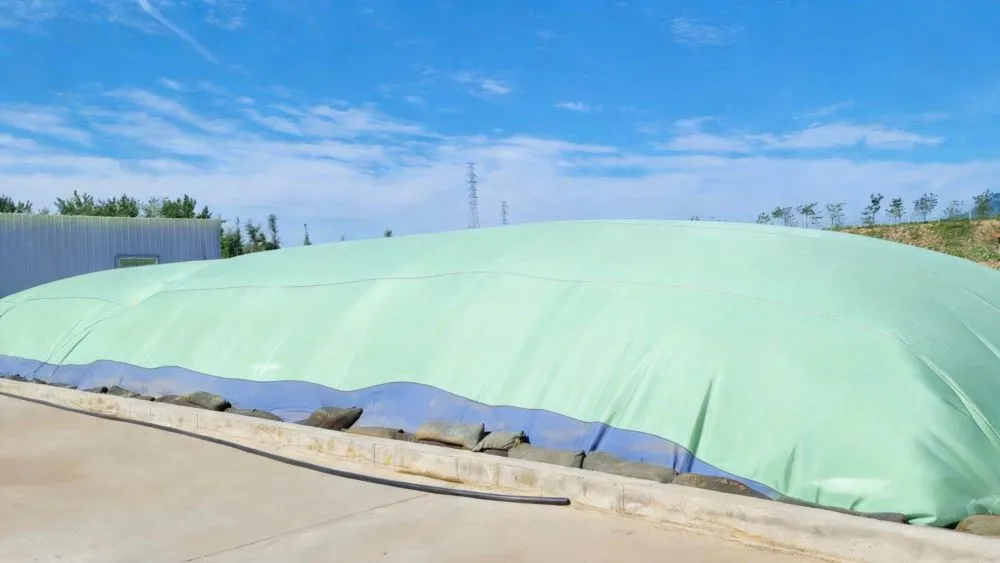

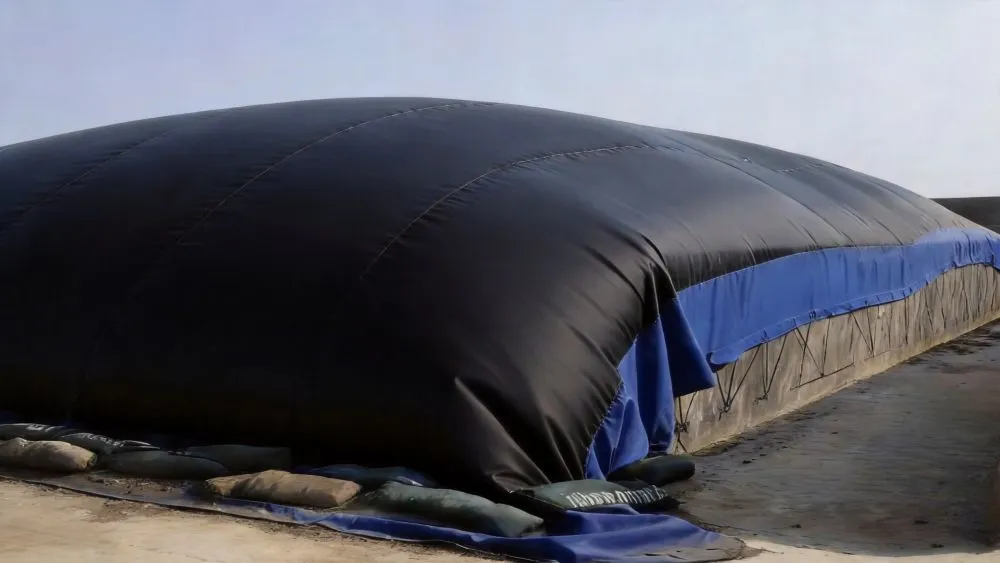

2. The ePTFE membrane is tightly covered over the pile.

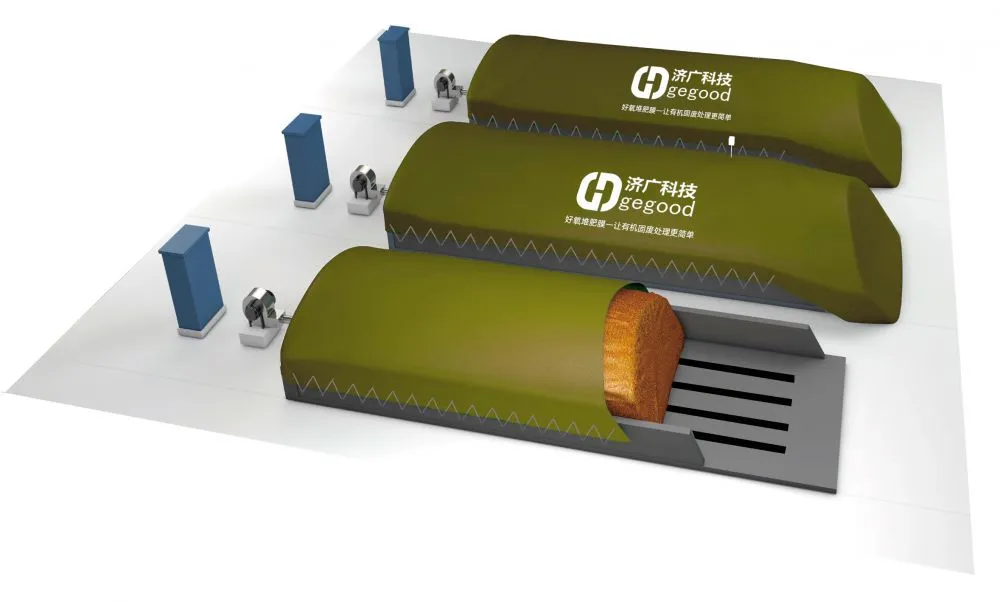

3. A low-pressure blower forces air into the pile, creating a micro-positive pressure underneath the membrane.

4. Water vapor and CO₂ (metabolic products of aerobic microbes) pass through the membrane pores and are released.

5. Rain and external moisture cannot enter the pile.

6. Ammonia (NH₃) and odorous molecules are partially condensed and retained, reducing nitrogen loss and odor.

7. Pathogens and bioaerosols are physically blocked, ensuring a hygienic working environment.

2. Key Advantages over Conventional Composting

Compared to traditional windrow or aerated static pile composting, the ePTFE membrane system offers:

• Greatly reduced emissions

• Ammonia emission reduction: ≥80%

• Greenhouse gas (GHG) reduction: up to 98.96%

• Nitrogen loss reduction: up to 90%

• Shorter fermentation time
  Main fermentation (thermophilic phase) is completed in 15–25 days (conventional systems often take 40–60 days).

• Lower cost

• Investment cost reduced by ~70% (no need for enclosed fermenting buildings)

• Operating cost reduced by ~60% (low energy, automated control)

• Higher product quality

• Organic matter content: 51.9–56.3% (20% higher than conventional methods)

• Final moisture content: 40–45%

• Stable, pathogen-free, and low-odor fertilizer

• Unattended intelligent operation
  The system can run 24/7 with automatic aeration and temperature monitoring, requiring minimal labor.

3. Process Flow

4. Key Performance Parameters

5. Representative Suppliers (for reference)

Note: This list is not exhaustive. Contact the companies directly for technical specifications and commercial inquiries.

6. Conclusion

The ePTFE semi-permeable membrane technology represents a significant advance in organic fertilizer production. It solves the classic trade-off between cost, environmental impact, and product quality. By enabling low-capital, low-odor, high-efficiency aerobic composting, it is particularly suitable for decentralized treatment of agricultural and municipal organic waste. The final product is a high-grade organic fertilizer that can improve soil organic matter and support sustainable agriculture.

For further information, readers are encouraged to search for keywords such as “NCS smart molecular membrane fermentation system” or “ePTFE aerobic composting membrane” to explore commercial applications and case studies.
